JLW230 || Janatics

product image

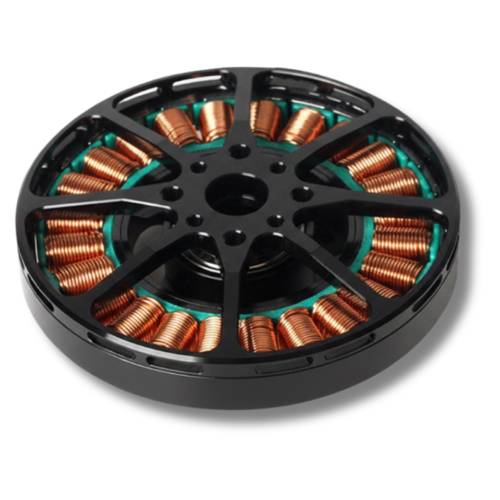

JLW230

Motor: 230KV

Product Overview

Parameter	JX8-Elite
Motor Size	Ø79×21mm
Max Thrust	Up to 6 kg
Weight	188 g (incl. cable)
Voltage	6S LiPo
Peak Current	28A (180s)
Max Power	700 W
Efficiency	13.44 g/W @ rated

Downloads

- Ultra-lightweight (188 g)
- Aviation-grade aluminum construction
- Up to 700 W output power
- Maximum thrust up to 6 kg
- High efficiency (up to 13 g/W)
- Dynamic balancing technology
- Centrifugal cooling design

- Excellent thrust-to-weight ratio
- Longer flight times
- Higher payload efficiency
- Reduced vibration for imaging applications
- Improved thermal performance
- Better flight stability and control

- Aerial Photo
- Surveying
- Long-Duration
